ALVEDA SOLUTIONS · Pharmaceutical Engineering & GMP

Engineering Pharmaceutical Facilities.From Concept to Compliance.

From feasibility and concept design to GMP-focused engineering, validation and project delivery, ALVEDA SOLUTIONS helps turn pharmaceutical ideas into operational facilities.

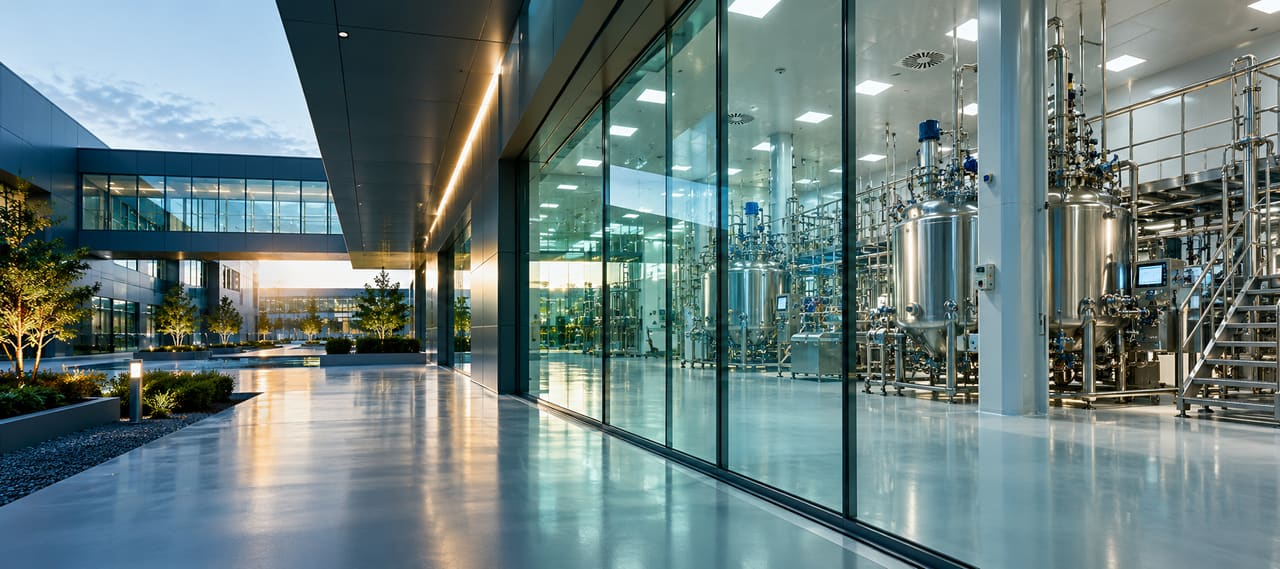

Glass facade of a modern pharmaceutical facility at dusk, with stainless-steel process vessels visible inside

Core expertise

Who We Are

Engineering Decisions That Shape Pharmaceutical Facilities.

ALVEDA SOLUTIONS is a pharmaceutical engineering and project delivery practice supporting pharmaceutical, biotechnology and regulated facilities from feasibility and concept design through detailed engineering, GMP compliance, CQV and operational readiness.

Planning, architecture, process requirements, building services and compliance considerations are developed as one coordinated approach, so early investment decisions carry through to execution.

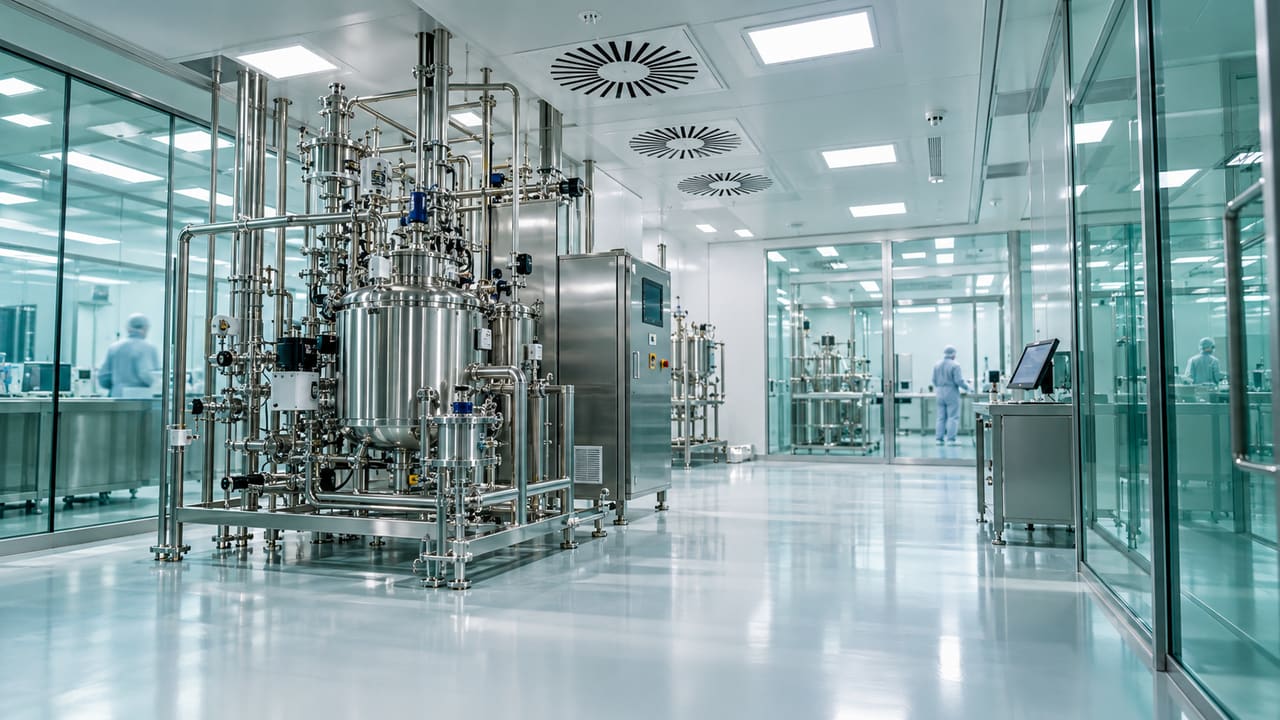

Cleanroom production suite with a stainless-steel process skid, ceiling air diffusers and gowned operators in the background

What We Do

Integrated Expertise. One Project Strategy.

Complex pharmaceutical projects require more than isolated disciplines. ALVEDA SOLUTIONS coordinates engineering decisions around manufacturing, compliance, constructability and operation.

Project Lifecycle

One Partner. Across the Project Lifecycle.

Decisions made at feasibility shape what is qualified at the end. We carry one technical basis from the first study through commissioning and qualification.

  1. 01

    Discover

    Assess the product portfolio, capacity, site options and a feasible investment envelope.

  2. 02

    Define

    Capture user requirements, regulatory basis and design criteria in an approved URS.

  3. 03

    Plan

    Set the master plan, phasing, budget, schedule and validation strategy.

  4. 04

    Design

    Develop coordinated architecture, cleanroom, HVAC, utilities and process design through DQ.

  5. 05

    Procure

    Specify, tender and evaluate equipment packages; witness FAT before shipment.

  6. 06

    Build

    Construct and install to approved drawings under documented site quality controls.

  7. 07

    Commission

    Start up, test, adjust and balance systems; complete SAT and punch lists.

  8. 08

    Validate

    Execute IQ/OQ/PQ protocols and compile evidence that systems perform as intended.

  9. 09

    Operate

    Support handover, SOPs, maintenance planning, periodic requalification and change control.

Engineering Outputs

Engineering You Can Build From.

Every stage ends in documents a contractor, a vendor or a validation team can act on.

  1. Engineering

    ENG
    • ENG-01Layouts
    • ENG-02Sections
    • ENG-03Process flow diagrams (PFDs)
    • ENG-04P&IDs
    • ENG-05Calculations
    • ENG-06Equipment schedules
  2. Procurement

    PRC
    • PRC-01Specifications
    • PRC-02Datasheets
    • PRC-03BOQs
    • PRC-04Technical bid evaluations
  3. Project delivery

    PDL
    • PDL-01Design reviews
    • PDL-02Site coordination
    • PDL-03Technical submittals
    • PDL-04Progress reporting
  4. CQV

    CQV
    1. URS
    2. DQ
    3. FAT
    4. SAT
    5. IQ
    6. OQ
    7. PQ

Illustrative Engineering Model

ALVEDA Facility Intelligence

One compact, generic facility read nine ways — classification, pressure, air handling, the flows of people, materials and waste, utilities, laboratories and containment. Choose a layer, then a room, to see the engineering intent behind it.

Illustrative engineering model of a compact pharmaceutical facility — Classification layer shownALV-FIM-01 · GENERIC COMPACT FACILITY · N.T.S.ILLUSTRATIVE ENGINEERING MODEL — NOT A PROJECT DRAWINGLAYER Z-CLAS

Swipe to see the whole plan · tap a room for details

Illustrative Engineering ModelA generic layout created for explanation, not a project drawing. Classifications, pressure steps and zones are indicative; each project defines its own in the URS and basis of design. Illustrative relative relationships only. Final pressure relationships and setpoints are developed per project from classification, process, product risk, containment, door strategy, airlock philosophy and the applicable regulatory basis.

01 / 09 — Z-CLAS

Classification

Cleanliness classes step up toward the point of exposure. The critical ISO 5 zones exist only inside the PEC and C-PEC, not across whole rooms.

  • ISO 5 — inside PEC / C-PEC
  • ISO 7 — buffer and HD rooms
  • ISO 8 — ante, airlock, production
  • CNC — controlled, not classified
  • Unclassified

Showing layer: Classification

Pharmaceutical Water

Pharmaceutical Water. Engineered as a Critical Utility.

From pretreatment to the point of use, water systems are sized, specified and qualified as part of the process, with WFI and pure steam where the product requires them.

  1. Raw water: The source is assessed from available analyses and seasonal variation, because its quality sets the whole treatment train.
  2. Pretreatment: Filtration, softening, activated carbon and dosing where needed protect the RO membranes from fouling, scaling and oxidants.
  3. Reverse osmosis: Single- or double-pass RO, selected from the feed quality, removes the bulk of dissolved solids.
  4. EDI polishing: Continuous electrodeionization polishes the RO permeate to the conductivity targeted for the project.
  5. Purified water: Product water is monitored against the quality attributes defined for the project before it enters storage.
  6. Water for injection (Where applicable): Where required. The WFI generation technology and storage/distribution strategy are selected according to the applicable pharmacopoeial and regulatory basis, feed-water quality, intended use, microbial-control philosophy and project-specific risk assessment.
  7. Pure Steam / Clean Steam (Where applicable): Where required. Steam quality, generation arrangement, feed, condensate requirements, intended use, materials and applicable standards are defined per project.
  8. Storage: Sanitary storage tanks, sized from the water balance, buffer generation against peak demand.
  9. Distribution loop: A continuously recirculating sanitary loop, with a defined sanitization concept, avoids stagnant water.
  10. Points of use: Each outlet is located, sized and detailed for its process demand, sampling and minimal dead legs.
Instruments
CTConductivity
TOCTotal organic carbon
FTFlow
TTTemperature
PTPressure

Illustrative sequence. Treatment steps and water grades are defined for each project.

Controlled Environments

Sterile, Aseptic and Hazardous-Drug Facilities.

Environments where the room itself is part of product and operator protection: classified space, containment and the monitoring that shows both are holding.

Compounding Facilities

Sterile. Non-Sterile. Hazardous.

One integrated engineering approach to zoning, cleanrooms, containment, utilities and operational readiness.

  • 01 · NSNon-Sterile Compounding
  • 02 · STSterile Non-Hazardous Compounding
  • 03 · HDHazardous Drug Compounding

Challenges We Solve

Engineering Challenges. Resolved Early.

  1. 01

    Poor Facility Flow

    Personnel, materials and waste moving through conflicting routes.

  2. 02

    Contamination Risk

    Zoning, air movement or pressure relationships not aligned with process needs.

  3. 03

    Utility Constraints

    Infrastructure that cannot reliably support equipment and production demand.

  4. 04

    Coordination Conflicts

    Architecture, process and MEP systems designed independently.

  5. 05

    Future Expansion

    Facilities unable to adapt to increased capacity or new manufacturing lines.

  6. 06

    Compliance Gaps

    Critical requirements discovered after design or construction decisions are locked.

GMP & Compliance

Compliance Is Designed, Not Added Later.

Compliance considerations should shape the layout, the airflow strategy and the documentation from the first design stage. Adding them after construction costs time, budget and requalification effort.

Pressure cascade

  1. Process room

    Grade B

    +45 Pa

    ΔP 15 Pa

  2. Gowning

    Grade B

    +30 Pa

    ΔP 15 Pa

  3. Airlock

    Grade C

    +15 Pa

    ΔP 5 Pa

  4. Corridor

    Grade C

    +10 Pa

Air flows towards lower pressure

Illustrative pressure cascade. Values are indicative and are set for each project.

Design considerations

  1. 01Layouts
  2. 02Personnel Flow
  3. 03Material Flow
  4. 04Pressure Cascades
  5. 05Air Classification
  6. 06Utilities
  7. 07Documentation
  8. 08Commissioning
  9. 09Qualification

Designed with consideration for applicable international GMP guidelines and project-specific regulatory requirements.

Qualification & Validation

From Requirement to Verified Performance.

Each qualification stage traces back to a requirement, so the evidence at the end answers the questions asked at the start.

  1. 01 · URS

    User Requirements Specification

    Defines what the system must do, in terms the owner can verify later.

  2. 02 · DESIGN REVIEW

    Design Review

    Checks the evolving design against the URS and GMP expectations before it is fixed.

  3. 03 · DQ

    Design Qualification

    Documents that the final design meets every requirement in the URS.

  4. 04 · FAT

    Factory Acceptance Testing

    Tests equipment at the vendor’s works so issues are corrected before shipment.

  5. 05 · SAT

    Site Acceptance Testing

    Confirms equipment performs on site after delivery and connection.

  6. 06 · COMMISSIONING

    Commissioning

    Starts up, adjusts and balances systems so they operate as designed.

  7. 07 · IQ

    Installation Qualification

    Verifies that systems are installed as specified, with correct components and documentation.

  8. 08 · OQ

    Operational Qualification

    Verifies that systems operate within defined limits across their operating ranges.

  9. 09 · PQ

    Performance Qualification

    Demonstrates consistent performance under actual or simulated operating conditions.

  10. 10 · HANDOVER

    Handover

    Transfers qualified systems and their records to the owner’s operations and quality teams.

Engineering Studies

Engineering Studies. Reasoned From the Process.

Concept and illustrative studies on generic scenarios. They show how we reason through an engineering question; none of them is an executed project.

Illustrative studyES-01

Sterile Facility Zoning and Pressure Cascade Study

Sector
Sterile manufacturing
Focus
Zoning, flows, airlocks and pressure strategy

Related services

  • Sterile & Aseptic Facility Engineering
  • Cleanroom Classification & Pressure Cascade
  • Facility Zoning & Flow Studies
  • HVAC Engineering
  • Environmental Monitoring Strategy

01 / 06

Study 1 of 6: Sterile Facility Zoning and Pressure Cascade Study

Existing Facility?

Upgrade Without Losing Sight of Operations.

Not every project is a new building. Assessments, phased engineering and shutdown planning keep production running while the facility improves.

  • 01

    Capacity expansion

  • 02

    Cleanroom upgrade

  • 03

    HVAC upgrade

  • 04

    Water system upgrade

  • 05

    Compliance upgrade

  • 06

    Utility upgrade

Why ALVEDA SOLUTIONS

How we approach a pharmaceutical project.

  • 01

    Integrated Thinking

    Engineering disciplines coordinated around one pharmaceutical project strategy.

  • 02

    Compliance by Design

    Operational and regulatory considerations embedded early in the design process.

  • 03

    Execution Focus

    Engineering solutions developed with constructability, operation and project delivery in mind.

  • 04

    Digital Coordination

    Modern tools, documentation and coordination supporting more informed project decisions.

Insights

Notes on pharmaceutical engineering.

Technical articles from the ALVEDA SOLUTIONS Engineering Team on pharmaceutical water, controlled environments, GMP and project delivery.

  • 01Pharma Engineering

    Pharmaceutical Water Systems: RO, PW and WFI Explained

    How a pharmaceutical water system is built up from pretreatment through reverse osmosis and polishing to Purified Water, where Water for Injection fits, and why the WFI technology, the loop temperature and the sanitization method are project decisions rather than fixed answers.

  • 03GMP

    EU GMP Annex 1 and the Contamination Control Strategy

    What a contamination control strategy (CCS) is under the revised EU GMP Annex 1, what it connects, and how facility design, HVAC, flows, cleaning, monitoring, sterilization, qualification and CAPA feed into one documented strategy.

FAQ

Questions Before a Project Starts.

  • Design starts from the product portfolio and dosage forms, whether the scope includes sterile, nonsterile, or hazardous-drug activities, the expected capacity and shift pattern, the site or existing building, available utilities, the target markets and their regulatory framework, and the intended schedule and budget range. A short description is enough to begin; existing studies, layouts, or a project brief help define a more precise scope.

Planning a Pharmaceutical Project?

Let’s define the engineering path from concept to operation.
